IP/PoE Transmission

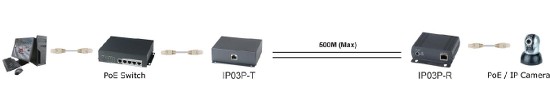

IP03P
POE Extender over Two Wire
- Extend Ethernet or any TCP/IP devices up to 1Km.
- Ethernet and POE data over any two wire cable: UTP, Coax, telephone, bell, alarm, power cables.
- Data transfer distance up to 500M, data rate is up to 30Mbps based on distance.
- Support10/100Mbpstransmissionrate.
- Flexible power source either POE Switch or external DC power adapter option. (order separately)
- Provides pass-through POE up to IEEE802.3at30W.
- Support high power POE to PTZ cameras at long distances.
- Connected devices are supplied with up to 7W via POE.
- IP03P Power Source Option Model: DC48V 40W power adapter: SWP480830R, DC56V 70W power adapter: SWP551260 POE Injector/POE Switch: IP05I, IP05H, High Power POE Injector/ POE Switch: IP06I, IP06H

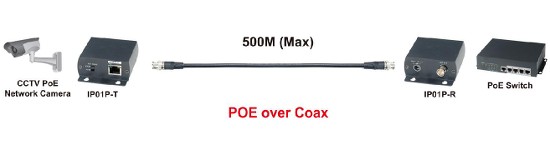

IP01P
Economic POE Extender over Coax
- To extend IP/POE camera over coax cable.
- Connects IP/POE camera to 10/100 BaseT POE Injector/Switch over one coax cable.
- Support POE: 10Mbps at 7W 500M, 10Mbps at 14W 300M, 100Mbps 15W 100M
- Support 10/100 Mbps transmission rate.
- Power source from POE Injector/POE Switch (order separately)
- IP01P Power Source Option Model: POE Injector/Swith: IP05I, IP05H

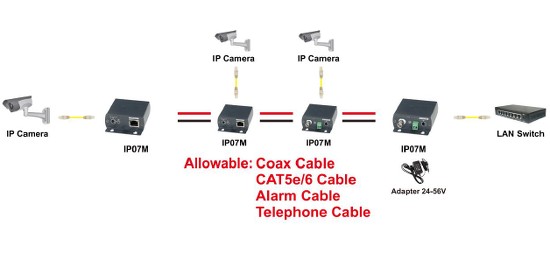

IP07M
Chainable IP Extender with Power over Coax/Two Wire
- Extend IP camera signal with Power over existing coaxial cable or any two wire cable.
- Provide IP camera power up to DC12V 1Amp.
- Support chainable/ series/star connection up to 4 units of IP07M.
- Long range transmission up to 500 meters (Max.)
- Support 10/100BASE-T transmission rate.
- Perfect to upgrade the analog camera system into IP CCTV application.
- IP07M Power Source Option Model: DC48V 40W power adapter: SWP480830R, DC56V 70W power adapter: SWP551260
3G/HD-SDI Transmission

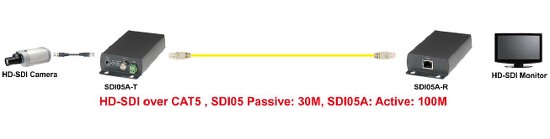

SDI05A
HD-SDI over CAT5 Extender – Active Type
- To send HD SDI signal over CAT5e UTP cable.
- Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M)
- Up to 100M meters via CAT5e cable at HD-SDI resolution.
- Optional model: SR01 signal repeater for longer distance application.

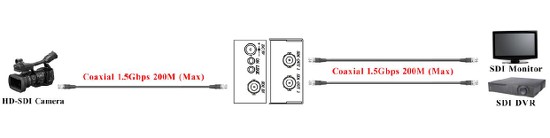

SR02E
HD-SDI Repeater
- Extend HD SDI signal over 75Ω coax cable up to 200M.
- Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M).
- Built in 2 output HD-SDI distribution function.
- Support video signal NTSC, PAL, 720p, 1080i, 1080p.
- Reclocker to resynchronize the signal—bringing it back to its original condition.
- Compact size for easy installation.

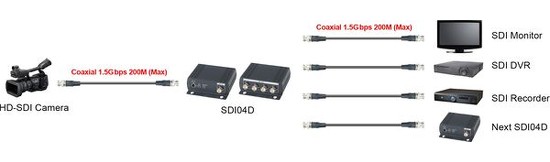

SDI04D
1 Input 4 Output HD-SDI Distribution Amplifier
- HD-SDI re-clocking 1 in 4 out distribution amplifier
- Provides automatic input cable re-clocking and equalization to 400 meters.
- Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M).
- HD signal distance total up to 400 meters.
- Perfect for long range HD-SDI distribution application.
Video & Power over Coax

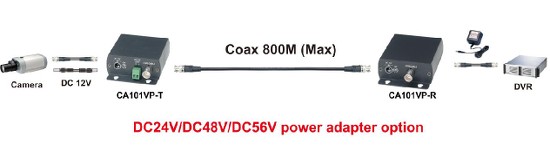

CA101VP
Video & Power over One Coax Cable
- To send video and camera power over one coaxial cable.
- Transmission distance up to 800M (Max.)
- Support camera power up to DC12V 1Amp.
- Power adapter Optional model: DC24V, DC48V, DC56V
960H Camera UTP Transmission

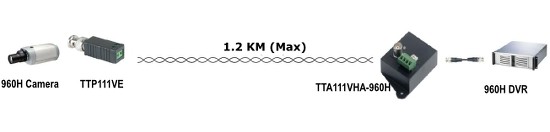

TTA111VEA-960H
960H Long Range Transmission over UTP Cable 1.2KM
- To send 960H camera video signal over twisted pair cable.
- Eliminate the coaxial coax.
- Package include: TTP111VE Passive Video Transmitter + TTA111VHA Digital Auto Gain Active Receiver with power adapter.
- TTP111VE is passive type, no power required.
- TTP111VE compact size for easy installation at camera side.
- TTA111VHA-960H design for 960H video auto gain receiver built in two mode auto gain control.
- TTA111VHA-960H auto gain receiver built in transient protection and grounding lifting.
HDBaseT Transmission

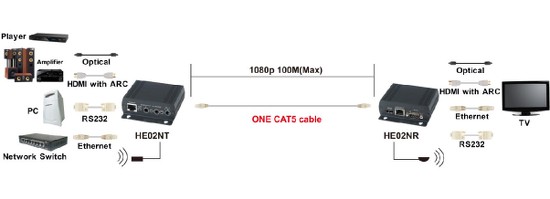

HE02N
HDMI (HDBaseT) CAT5 Extender with Ethernet/ARC/RS232/IR
- Extends HDMI, Ethernet, ARC, RS232 and IR signal over one CAT5e/6 cable.
- Uncompressed high definition video up to 1080p@60Hz@48bits.
- HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant.
- Max. Data Rate- 10.2Gbps.
- Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
- Transmission range up to 100 meters at 1080p resolution.
- Support one port 10/100Mbps network, allow to connect the network TV or Ethernet devices.
- ARC or optical digital audio mode auto selection, send TV digital audio back to the amplifier.
- Bi-directional IR, support 30-60khz.
- Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing status requests and control of the destination unit.

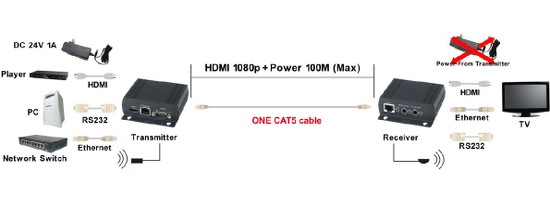

HE02P
HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH
- Extends HDMI, RS232 and IR signal with Ethernet over one CAT5e/6 cable.
- Uncompressed high definition video up to 1080p@60Hz@48bits.
- HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant.
- Max. Data Rate- 10.2Gbps.
- Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
- Transmission range up to 100 meters at 1080p resolution.
- Bi-directional IR, support 30-60khz.
- Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing
status requests and control of the destination unit.
- Support two port 10/100Mbps network, allow to connect the network TV or Ethernet devices.
- Support PoH (Power over HDBaseT), no external power required at receiver.
- External power supply included for the Transmitter.
CATV Transmission

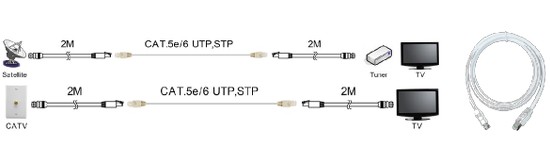

CE01TV
CATV CAT5 Extender
- To send broadband CATV, VHF, VHF and FM signal over CAT5e cable.
- Shielded RJ45 male with 2M RG6 coax cable.
- Passive type, no external power required.
- Support bandwidth 40Mhz to 2.4Ghz.
- Distance up to 30M at 2.4Ghz frequency, up to 100M based on low frequency.
- Work with CATV, satellite receivers, RF splitter and amplifier.
- Package include 2 units/a pair.
HDMI Transmission

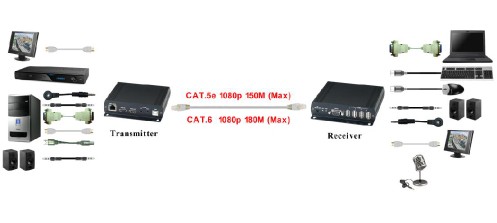

HKM01
HDMI KVM & USB, Audio, RS232, IR CAT5 Extender 180M over IP
- Extend HDMI, RS232, IR and USB signals over one CAT5E/CAT6 cable.
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) 32bpp@ 60 Hz
- Transmission range up to 150M over CAT5e, 180M over CAT6.
- Supports 2-way RS232 commands at baud rate 115200 (control software on a PC, or other automated control system hardware) to control devices attached to the matrix using RS232. Full Duplex data communication.
- Built in Bi-Directional analog audio.
- Built in Bi-Directional IR.
- HKM01T transmitter unit built in HDMI loop output.
- Receiver unit with 4 ports USB devices (1 port USB 1.1 & 3 Port USB 2.0), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
- Support point to point and multiple source devices to multi-display connections via Gigabit network switch.
- Perfect for control remote machines and security monitoring systems, digital signage application.
- Optional model: SR01 signal repeater for longer distance application.

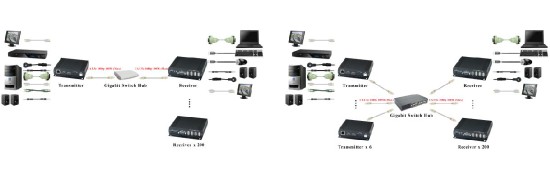

Over Gigabit Ethernet switches: One to Multiple or Multiple to Multiple Connection:
1 Input to Multiple outputs connections via a Gigabit network switch / Multiple Inputs to Multiple outputs connections via a Gigabit network switch

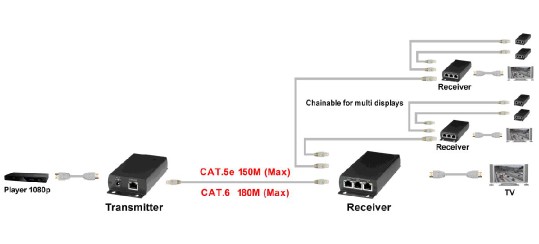

HE03L
HDMI CAT5 Extender 180M with Chainable Receiver
- Extends HDMI signal over one CAT5/5e/6 cable.
- Including HE03LT transmitter and HE03LR receiver unit.
- Receiver built in 1 x HDMI output and 2 x CAT5 output for chainable to another receiver for longer distance and multiple displays.
- HE03LR receiver could be chainable up to 31 layers with distance 3.1KM. It also could be cascade, up to 100 displays.
- HDMI 1.3 compliant.
- HDCP compatible.
- Transmission range up to 150M over CAT5e, 180M over CAT6.
- Plug and play for easy operation.

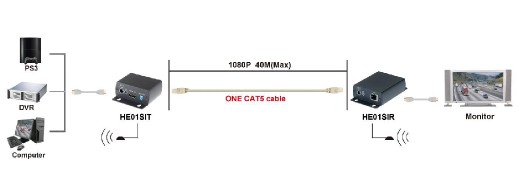

HE01SI
3D HDMI & IR CAT5E Extender over Single CAT5E cable
- Extends HDMI and IR signal over one CAT5/5e/6 cable.
- HDMI 1.3 compliant, 3D capable
- Built in IR control, IR signal could be selectable at either TX/RX side.
- Transmission range up to 70 meters by 1080i/720p.
- Transmission range up to 40 meters by 1080p@60Hz@24bit.
- Built in auto equalization for easy plug and play.
- Transmitter unit built in EDID auto backup function.
- HDCP compatible.

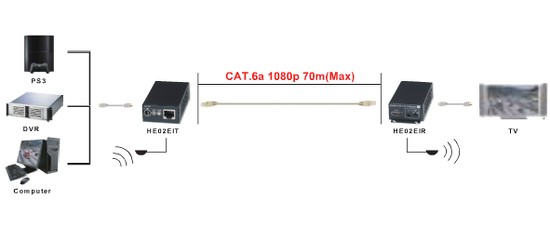

HE02EI
3D 4Kx2K HDMI (HDBaseT) & IR CAT5 Extender Over Single CAT5 Cable
- Extends HDMI and IR signal over one CAT5/5e/6 cable.
- Uncompressed high definition video up to 1080p@60Hz@48bits and 3D and 4K*2K capable.
- Built in IR control, IR signal could be selectable at either TX/RX side.
- Max. Data Rate- 10.2Gbps.
- HDMI 1.4 and HDCP compliance.
- Transmission range up to 60M by CAT5e/6, 70M by CAT6a cable at 1080p@60Hz@24bit.
- Audio support up to LPCM7.1 , Dolby TrueHD , DTS-HD MA.

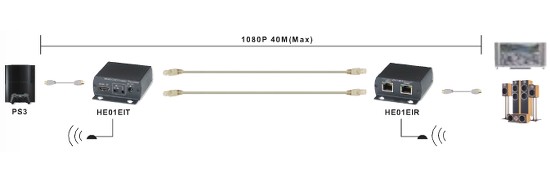

HE01EI
3D HDMI & IR CAT5 Extender over Two CAT5e cable
- Extends HDMI & IR signal over two CAT5/5e/6 cables.
- External power supply requested with transmitter unit only, no power required at receiver (monitor) side.
- Support 3D at 1080p/24fps.
- Built in IR signal, IR control could be selectable at either TX/RX side.
- Transmission range up to 60M at 1080i, 40M at 1080p resolution.
- HDMI 1.3 compliant, DDC, DTS-HD,Dolby.
- HDCP compliant.
VGA Transmission

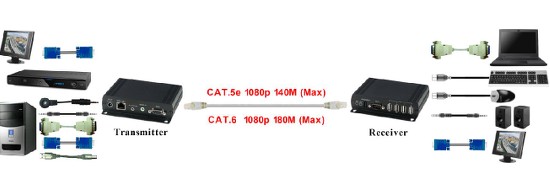

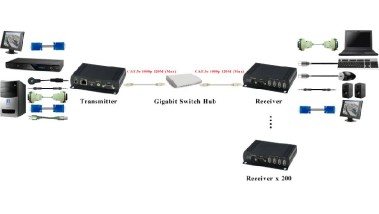

VKM03
VGA & USB with Stereo Audio, RS232, and IR CAT5 Extender
- Extend VGA, stereo audio, RS232, IR and USB signals over one CAT5E/CAT6 cable.
- USB port support USB 2.0, USB 1.0 & USB 1.1
- Full Duplex data communication.
- Transmitter unit built in VGA loop output.
- Receiver unit with 4 ports USB devices, to extend USB 2.0 peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
- Supports up to 1920x1080.
- Transmission range up to 140 meters over CAT5e, 180M over CAT6.
- Support point to point and point to multi-display connections via Gigabit network switch.
- Plug and play for easy operation.
- Perfect for control remote machines and security monitoring systems, digital signage application.
- Optional model: SR01 signal repeater for longer distance application.
|
